During March and April 2005, TDI-Brooks using the R/V GEOEXPLORER completed two pre-drill environmental baseline survey (EBS) cruises for ESSO and SHELL in OPL-209 and OPL-322, respectively. Figure 1 shows an updated map of all the pre- and post-drill EBSs that TDI-Brooks has conducted offshore Nigeria using the R/V GEOEXPLORER. The GEOEXPLORER has conducted virtually all the deep water EBSs in Nigeria over the two years.

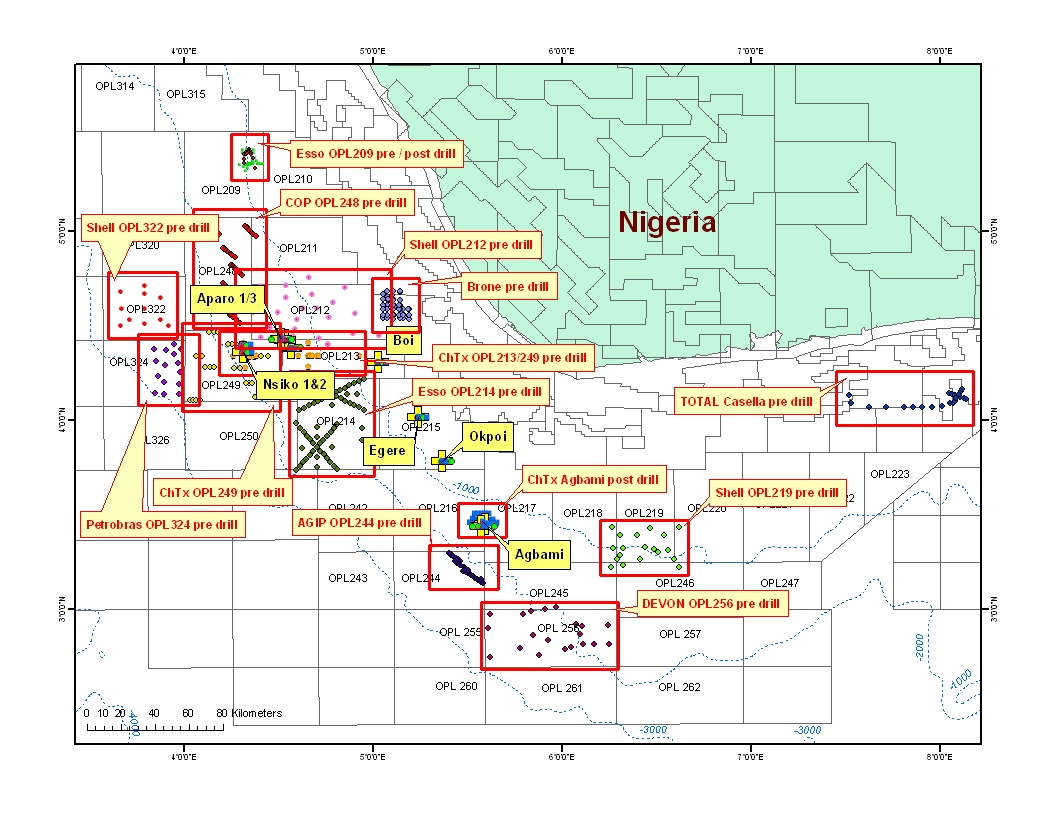

Figure 1: 2003 – 2005 Deep Water Pre- and Post-Drill Environmental Baseline Surveys (EBS)
Conducted by TDI-Brooks’ R/V GEOEXPLORER (click for larger image)
The pre- and post-drill EBSs involve the following sampling techniques:
- Grab sampling or box coring for infauna, chemical contaminants and ancillary parameters (Figure 2);
- Water column sampling with a CTD / Rosette for water column measurements (dissolved oxygen, nutrients, TSS, chlorophyll, etc.) (Figure 3);
- Phyto and zooplankton tows (Figure 4); and
- Air sampling.

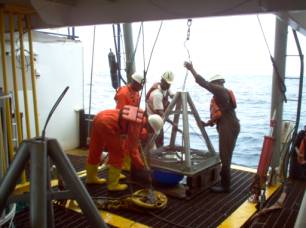

Figure 2: A. Grab sampler being deployed from the starboard A-Frame on the R/V GEOEXPLORER.
B. Sampling of the sediment from the grab sampler.

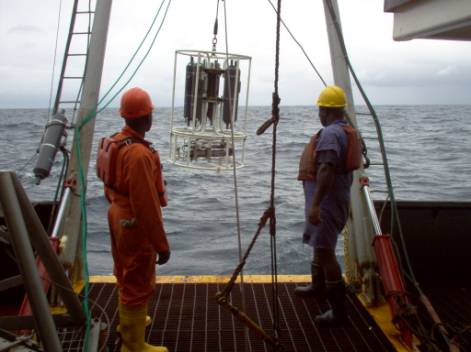

Figure 3: Deployment of the CTD / Rosette package for water column studies.

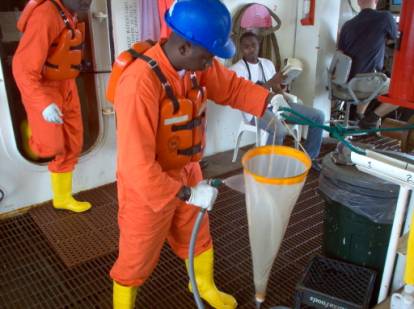

Figure 4:Plankton tow being processed on the back deck.
